cleanup: remove analyze code, and only keep code really relevant for HTR

README.md

@@ -41,7 +41,7 @@ If neither `--train` nor `--validate` is specified, the NN infers the text from

 ## Integrate word beam search decoding

-It is possible to use the word beam search decoder \[4\] instead of the two decoders shipped with TF.
+It is possible to use the [word beam search decoder](https://repositum.tuwien.ac.at/obvutwoa/download/pdf/2774578) instead of the two decoders shipped with TF.
 Words are constrained to those contained in a dictionary, but arbitrary non-word character strings (numbers, punctuation marks) can still be recognized.
 The following illustration shows a sample for which word beam search is able to recognize the correct text, while the other decoders fail.

@@ -61,7 +61,7 @@ Beam width is set to 50 to conform with the beam width of vanilla beam search de

 ## Train model with IAM dataset

-Follow these instructions to get the IAM dataset \[5\]:
+Follow these instructions to get the IAM dataset:

 * Register for free at this [website](http://www.fki.inf.unibe.ch/databases/iam-handwriting-database)
 * Download `words/words.tgz`
@@ -88,7 +88,7 @@ Using the `--fast` option and a GTX 1050 Ti training takes around 3h with a batc
 ## Information about model

 ### Overview
-The model \[1\] is a stripped-down version of the HTR system I implemented for my thesis \[2\]\[3\].
+The model is a stripped-down version of the HTR system I implemented for [my thesis]((https://repositum.tuwien.ac.at/obvutwhs/download/pdf/2874742)).
 What remains is what I think is the bare minimum to recognize text with an acceptable accuracy.
 It consists of 5 CNN layers, 2 RNN (LSTM) layers and the CTC loss and decoding layer.
 The illustration below gives an overview of the NN (green: operations, pink: data flowing through NN) and here follows a short description:
@@ -102,33 +102,15 @@ The illustration below gives an overview of the NN (green: operations, pink: dat
 ![nn_overview](./doc/nn_overview.png)


-### Analyze model
-Run `python analyze.py` with the following arguments to analyze the image file `data/analyze.png` with the ground-truth text "are":
-
-* `--relevance`: compute the pixel relevance for the correct prediction
-* `--invariance`: check if the model is invariant to horizontal translations of the text
-* No argument provided: show the results
-

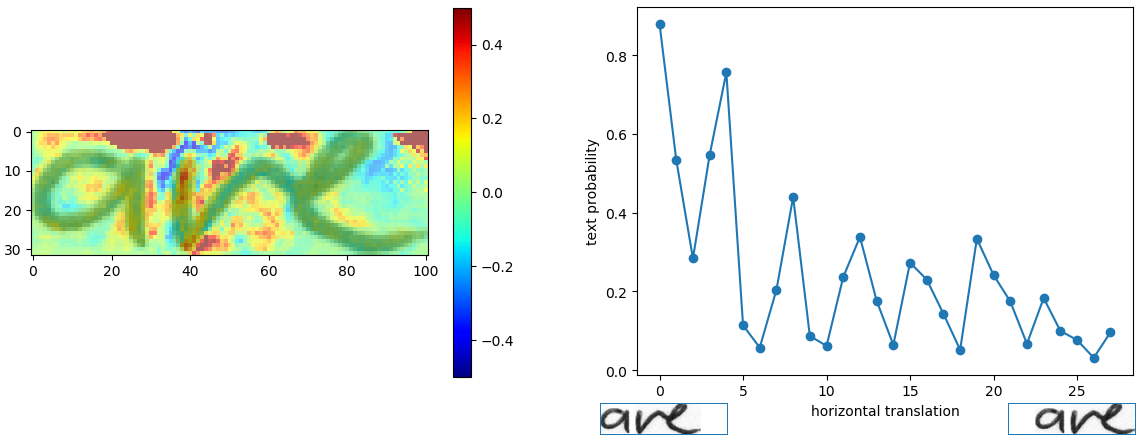

-Results are shown in the plots below.
-For more information see [this article](https://towardsdatascience.com/6c04864b8a98).
-
-![analyze](./doc/analyze.png)
-
-
 ## FAQ
 * I get the error message "... TFWordBeamSearch.so: cannot open shared object file: No such file or directory": if you want to use word beam search decoding, you have to compile the custom TF operation from source
 * Where can I find the file `words.txt` of the IAM dataset: it is located in the subfolder `ascii` on the IAM website
-* I want to recognize text of line (or sentence) images: this is not possible with the provided model. The size of the input image is too small. For more information read [this article](https://medium.com/@harald_scheidl/27648fb18519) or have a look at the [lamhoangtung/LineHTR](https://github.com/lamhoangtung/LineHTR) repository
+* I want to recognize the text contained in a text-line: the model is too small for this, you have to first segment the line into words, e.g. using the model from the [WordDetectorNN](https://github.com/githubharald/WordDetectorNN) repository
 * I get an error when running the script more than once from an interactive Python session: do **not** call function `main()` in file `main.py` from an interactive session, as the TF computation graph is created multiple times when calling `main()` multiple times. Run the script by executing `python main.py` instead


 ## References
-\[1\] [Build a Handwritten Text Recognition System using TensorFlow](https://towardsdatascience.com/2326a3487cd5)
-
-\[2\] [Scheidl - Handwritten Text Recognition in Historical Documents](https://repositum.tuwien.ac.at/obvutwhs/download/pdf/2874742)
-
-\[3\] [Shi - An End-to-End Trainable Neural Network for Image-based Sequence Recognition and Its Application to Scene Text Recognition](https://arxiv.org/pdf/1507.05717.pdf)
-
-\[4\] [Scheidl - Word Beam Search: A Connectionist Temporal Classification Decoding Algorithm](https://repositum.tuwien.ac.at/obvutwoa/download/pdf/2774578)
+* [Build a Handwritten Text Recognition System using TensorFlow](https://towardsdatascience.com/2326a3487cd5)
+* [Scheidl - Handwritten Text Recognition in Historical Documents](https://repositum.tuwien.ac.at/obvutwhs/download/pdf/2874742)
+* [Scheidl - Word Beam Search: A Connectionist Temporal Classification Decoding Algorithm](https://repositum.tuwien.ac.at/obvutwoa/download/pdf/2774578)

-\[5\] [Marti - The IAM-database: an English sentence database for offline handwriting recognition](http://www.fki.inf.unibe.ch/databases/iam-handwriting-database)

src/analyze.py

-import copy
-import math
-import pickle
-import sys
-
-import cv2
-import matplotlib.pyplot as plt
-import numpy as np
-
-from DataLoaderIAM import Batch
-from Model import Model, DecoderType
-from SamplePreprocessor import preprocess
-
-
-# constants like filepaths
-class Constants:
-    "filenames and paths to data"
-    fnCharList = '../model/charList.txt'
-    fnAnalyze = '../data/analyze.png'
-    fnPixelRelevance = '../data/pixelRelevance.npy'
-    fnTranslationInvariance = '../data/translationInvariance.npy'
-    fnTranslationInvarianceTexts = '../data/translationInvarianceTexts.pickle'
-    gtText = 'are'
-    distribution = 'histogram'  # 'histogram' or 'uniform'
-
-
-def odds(val):
-    return val / (1 - val)
-
-
-def weightOfEvidence(origProb, margProb):
-    return math.log2(odds(origProb)) - math.log2(odds(margProb))
-
-
-def analyzePixelRelevance():
-    "simplified implementation of paper: Zintgraf et al - Visualizing Deep Neural Network Decisions: Prediction Difference Analysis"
-
-    # setup model
-    model = Model(open(Constants.fnCharList).read(), DecoderType.BestPath, mustRestore=True)
-
-    # read image and specify ground-truth text
-    img = cv2.imread(Constants.fnAnalyze, cv2.IMREAD_GRAYSCALE)
-    (w, h) = img.shape
-    assert Model.imgSize[1] == w
-
-    # compute probability of gt text in original image
-    batch = Batch([Constants.gtText], [preprocess(img, Model.imgSize)])
-    (_, probs) = model.inferBatch(batch, calcProbability=True, probabilityOfGT=True)
-    origProb = probs[0]
-
-    grayValues = [0, 63, 127, 191, 255]
-    if Constants.distribution == 'histogram':
-        bins = [0, 31, 95, 159, 223, 255]
-        (hist, _) = np.histogram(img, bins=bins)
-        pixelProb = hist / sum(hist)
-    elif Constants.distribution == 'uniform':
-        pixelProb = [1.0 / len(grayValues) for _ in grayValues]
-    else:
-        raise Exception('unknown value for Constants.distribution')
-
-    # iterate over all pixels in image
-    pixelRelevance = np.zeros(img.shape, np.float32)
-    for x in range(w):
-        for y in range(h):
-
-            # try a subset of possible grayvalues of pixel (x,y)
-            imgsMarginalized = []
-            for g in grayValues:
-                imgChanged = copy.deepcopy(img)
-                imgChanged[x, y] = g
-                imgsMarginalized.append(preprocess(imgChanged, Model.imgSize))
-
-            # put them all into one batch
-            batch = Batch([Constants.gtText] * len(imgsMarginalized), imgsMarginalized)
-
-            # compute probabilities
-            (_, probs) = model.inferBatch(batch, calcProbability=True, probabilityOfGT=True)
-
-            # marginalize over pixel value (assume uniform distribution)
-            margProb = sum([probs[i] * pixelProb[i] for i in range(len(grayValues))])
-
-            pixelRelevance[x, y] = weightOfEvidence(origProb, margProb)
-
-            print(x, y, pixelRelevance[x, y], origProb, margProb)
-
-    np.save(Constants.fnPixelRelevance, pixelRelevance)
-
-
-def analyzeTranslationInvariance():
-    # setup model
-    model = Model(open(Constants.fnCharList).read(), DecoderType.BestPath, mustRestore=True)
-
-    # read image and specify ground-truth text
-    img = cv2.imread(Constants.fnAnalyze, cv2.IMREAD_GRAYSCALE)
-    (w, h) = img.shape
-    assert Model.imgSize[1] == w
-
-    imgList = []
-    for dy in range(Model.imgSize[0] - h + 1):
-        targetImg = np.ones((Model.imgSize[1], Model.imgSize[0])) * 255
-        targetImg[:, dy:h + dy] = img
-        imgList.append(preprocess(targetImg, Model.imgSize))
-
-    # put images and gt texts into batch
-    batch = Batch([Constants.gtText] * len(imgList), imgList)
-
-    # compute probabilities
-    (texts, probs) = model.inferBatch(batch, calcProbability=True, probabilityOfGT=True)
-
-    # save results to file
-    f = open(Constants.fnTranslationInvarianceTexts, 'wb')
-    pickle.dump(texts, f)
-    f.close()
-    np.save(Constants.fnTranslationInvariance, probs)
-
-
-def showResults():
-    # 1. pixel relevance
-    pixelRelevance = np.load(Constants.fnPixelRelevance)
-    plt.figure('Pixel relevance')
-
-    plt.imshow(pixelRelevance, cmap=plt.cm.jet, vmin=-0.25, vmax=0.25)
-    plt.colorbar()
-
-    img = cv2.imread(Constants.fnAnalyze, cv2.IMREAD_GRAYSCALE)
-    plt.imshow(img, cmap=plt.cm.gray, alpha=.4)
-
-    # 2. translation invariance
-    probs = np.load(Constants.fnTranslationInvariance)
-    f = open(Constants.fnTranslationInvarianceTexts, 'rb')
-    texts = pickle.load(f)
-    texts = ['%d:' % i + texts[i] for i in range(len(texts))]
-    f.close()
-
-    plt.figure('Translation invariance')
-
-    plt.plot(probs, 'o-')
-    plt.xticks(np.arange(len(texts)), texts, rotation='vertical')
-    plt.xlabel('horizontal translation and best path')
-    plt.ylabel('text probability of "%s"' % Constants.gtText)
-
-    # show both plots
-    plt.show()
-
-
-if __name__ == '__main__':
-    if len(sys.argv) > 1:
-        if sys.argv[1] == '--relevance':
-            print('Analyze pixel relevance')
-            analyzePixelRelevance()
-        elif sys.argv[1] == '--invariance':
-            print('Analyze translation invariance')
-            analyzeTranslationInvariance()
-    else:
-        print('Show results')
-        showResults()
