Refactor the writing of the result image; Add optional color range

GUI.py

@@ -91,7 +91,7 @@ class GUI(object):
         :return: None
         """
         self.image_path: String = askopenfilename(initialdir='/', title='Select file',
-                                                  filetypes=(('jpeg files', '*.jpeg'), ('all files', '*.*')))
+                                                  filetypes=[('jpeg files', '*.jpeg'), ('jpg files', '*.jpg')])

         new_image = self.read_image(self.image_path)

@@ -132,6 +132,11 @@ if __name__ == '__main__':

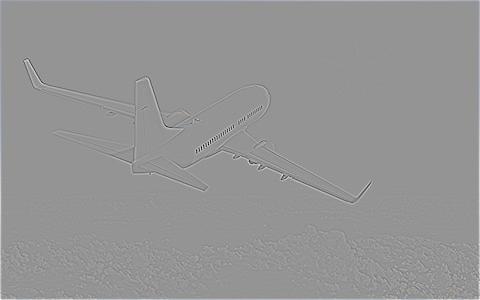

     Notice: The edited image will be saved in ./images/edited.py. Each new filter will overwrite this image. This may
     take a while.
+    It is not possible to edit *.png images since they are images with size NxMx4.
+    If the colors should be in a certain range e.g. [0, 255] feel free to checkout Filter.
+
+    For the edges it is proofed if the H-element is in the image. This is done because otherwise the opposite site of
+    the image would be relevant within the filter region.
     """
     root = Tk()
     root.resizable(False, False)

editor.py

-import copy
 from tokenize import String

 from skimage import io
@@ -27,12 +26,15 @@ class Editor(object):
         :return: None
         """
         image = io.imread(fname=self.image_path)
-        edited_image = copy.deepcopy(image)  # io.imread(fname=self.image_path)
-        height, width, _ = image.shape
-
+        height, width, _ = image.shape  # len(image), len(image[0, 0:, 0:]) wont work for .png-images.
+        edited_image = np.zeros((height, width, 3), dtype=np.float64)
+        edited_pixels = 0
         for v in range(height):
             for u in range(width):
                 pixel = Pixel(image, v, u)
                 edited_image[v, u] = pixel.filter_with(option)
+                edited_pixels += 1
+                if edited_pixels % 10000 == 0:
+                    print('Finished with: ' + str(edited_pixels) + ' of ' + str(width * height))

         io.imsave(arr=edited_image, fname=self.edit_path)

filter.py

@@ -13,10 +13,11 @@ from mask import *

 class Filter(object):

-    def __init__(self, image: imageio.core.util.Array, v: int, u: int) -> None:
+    def __init__(self, image: imageio.core.util.Array, v: int, u: int, color_range: List = None) -> None:
         """
         This class edits a pixel in a image with a given filter.

+        :param color_range: If the image pixel should be in a certain range e.g. [0, 255].
         :param image: The image in which the filter should be used.
         :param v: The v coordinate
         :param u: The u coordinate
@@ -24,6 +25,10 @@ class Filter(object):
         self.image = image
         self.v = v
         self.u = u
+        self.color_range = color_range
+        if color_range:
+            self.min_color = np.min(self.color_range)
+            self.max_color = np.max(self.color_range)

     def use(self, option: String = FILTER.empty.value, linear: bool = True, dim: Tuple = (5, 5),
             f: function = np.min) -> List:
@@ -41,6 +46,21 @@ class Filter(object):
         else:
             return self.non_linear_filter(f, dim)

+    def __keep_values_in_range(self, pixel):
+        if pixel[COLOR.red.value] > self.max_color:
+            pixel[COLOR.red.value] = self.max_color
+        if pixel[COLOR.green.value] > self.max_color:
+            pixel[COLOR.green.value] = self.max_color
+        if pixel[COLOR.blue.value] > self.max_color:
+            pixel[COLOR.blue.value] = self.max_color
+
+        if pixel[COLOR.red.value] < self.min_color:
+            pixel[COLOR.red.value] = self.min_color
+        if pixel[COLOR.green.value] < self.min_color:
+            pixel[COLOR.green.value] = self.min_color
+        if pixel[COLOR.blue.value] < self.min_color:
+            pixel[COLOR.blue.value] = self.min_color
+
     def linear_filter(self, option: String) -> List:
         """
         This method is for filtering with linear filters.
@@ -50,7 +70,7 @@ class Filter(object):
         :return: A modified rgb-pixel
         """

-        height_I, width_I, _ = self.image.shape
+        height_I, width_I, _ = self.image.shape  # len(self.image), len(self.image[0, 0:, 0:])

         H = np.matrix(Mask().H[option])
         divider = abs(H.sum())
@@ -68,6 +88,9 @@ class Filter(object):
                     for color in COLOR:
                         new_pixel[color.value] += self.image[self.v + j, self.u + i, color.value] * \
                                                   np.multiply(1 / divider, H[center_j + j, center_i + i])
+
+        if self.color_range:
+            self.__keep_values_in_range(new_pixel)
         return new_pixel

     def non_linear_filter(self, f: function, dim: Tuple = (5, 5)) -> List:
@@ -91,9 +114,13 @@ class Filter(object):
                         (self.v + j >= 0) and (self.v + j <= height_I - 1):
                     for color in COLOR:
                         colors_neighbors[color.value] += [self.image[self.v + j, self.u + i, color.value]]
-
-        return [
+        new_pixel = [
             f(colors_neighbors[COLOR.red.value]),
             f(colors_neighbors[COLOR.green.value]),
             f(colors_neighbors[COLOR.blue.value])
         ]
+
+        if self.color_range:
+            self.__keep_values_in_range(new_pixel)
+
+        return new_pixel
